| 모크: | 교섭할 수 있습니다 |
| 가격: | negotiable |
| 표준 포장: | 고객 요청에 따라서 표준 수출은 패키징합니다 |
| 배달 기간: | 1-30 일로 일합니다 |
| 지불 방법: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램 |
| 공급 용량: | 80000 PC / 년 |

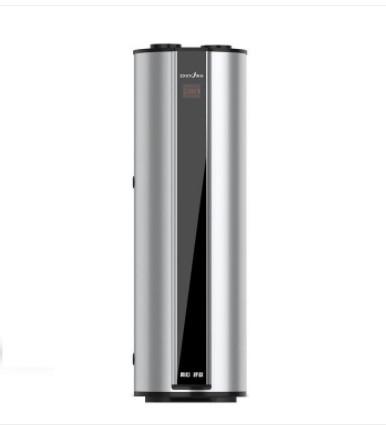

Features of 100KW Spa Heater Monoblock Air Source Heating Heat Pump Casing And Condenser Constant Temperature Instant Water
Main functions
This kind of heat pump unit control system can meet the needs of users in different seasons. The modular control system for swimming pool heat pump hot water units includes swimming pool heat pump hot water units, including at least two swimming pool heat pump hot water units, and a micro-processing control system. At least two swimming pool heat pump hot water units are respectively connected to the micro-processing control system. Due to the above technical scheme, this design controls the start and stop of the heat pump hot water unit according to the water temperature of the swimming pool and the outdoor environment temperature. The entire system runs automatically and stably without special personnel on duty. The system runs the minimum number of units through modular control, ensuring the constant temperature of the swimming pool. Under the premise of, it can achieve good energy-saving effect, which not only protects the equipment, but also avoids impact on the power supply system.
The swimming pool heat pump hot water equipment also includes two telescopic roller devices that are symmetrically arranged on two opposite side walls of the sheet metal shell; the telescopic roller device includes a roller mechanism, a driving mechanism, and a guide mechanism. The mechanism is fixedly installed on the side wall of the sheet metal shell, the guide mechanism is installed on the side wall of the sheet metal shell, the driving mechanism is connected with the roller mechanism, and the roller mechanism is connected with the guide mechanism. Connected, the beneficial effect of the present utility model is: the swimming pool heat pump hot water equipment of the present utility model needs to be moved through the retractable roller device, when it needs to be fixed, the roller device can be retracted to prevent accidental movement of the device. Higher flexibility and practicality.
Company brief introduction
Over 20 years production experience, thanks to R&D hard and smart working, company is authorized over 400 patents, products quality play a lead role in HVAC system field
Leomon heat pump is also leader member for editting swimming pool air source heat pumps stadnard, leader for HVAC system and heating projects
Already service for many projects such as spa, villa, tourisa spots,, hotels, hospitals, restarant, beauty care, etc
Our strong and professional technical and marketing team ready to make best service!
Technical paremeters of 100KW Spa Heater Monoblock Air Source Heating Heat Pump Casing And Condenser Constant Temperature Instant Water
| Item | KFXRS-100II |
| Nominal heating capacity at room temperature(kW) |
100 |
| Nominal input power at room temperature(kW) |
21.5 |
| Rated voltage(Hz) | 380V3N-50 |
| Low temperature nominal heatingWkW) |
81 |
| Low temperature nominal input power(kW) |
21 |
| Maximum input power(kW) | 45 |
| Maximum current(A) | 90 |
| noisedb(A) | <78 |
| Anti-shock level | I |
| waterproof level | IPX4 |
| Caliber of inlet and outlet | DN50 |
| Unit size (mm) | 2206x1030x2170 |
| Unit Weight kg) | 750 |
The nominal working conditions at room temperature are: ambient dry bulb 20°C, ambient wet bulb 15°C, initial water temperature 15°C, and ending water temperature 55. (2; The nominal low temperature conditions are: ambient dry bulb 72, ambient wet bulb 61, initial water temperature 15°C, and ending water temperature 55.
