| 모크: | 교섭할 수 있습니다 |
| 가격: | negotiable |
| 표준 포장: | 고객 요청에 따라서 표준 수출은 패키징합니다 |
| 배달 기간: | 1-30 일로 일합니다 |
| 지불 방법: | L/C (신용장), 인수 인도, D/P (지급도 조건), 전신환, 웨스턴 유니온, 머니그램 |
| 공급 용량: | 80000 PC / 년 |

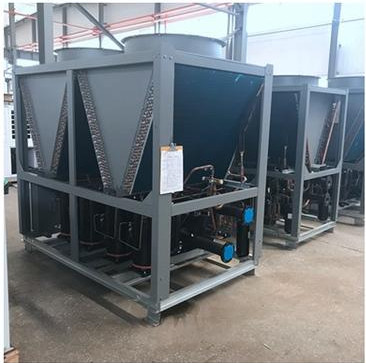

Features of 15HP 55 KW Split Heat Pump For Household hot water
An energy efficiency detection system for actual operation of split heat pump air conditioner, including split heat pump air conditioner, indoor unit air inlet temperature and humidity sensor group, indoor unit air outlet temperature and humidity sensor group, air volume hood data processor, outdoor temperature and humidity sensor and central control box , The central control box provides electrical energy for the split heat pump air conditioner and monitors its power. The indoor unit air inlet temperature and humidity sensor group is installed in the ventilation duct of the air flow hood, and the indoor unit air outlet temperature and humidity sensor group is installed on the outlet louver of the split heat pump air conditioner Above, the outdoor temperature and humidity sensor is installed outdoors; the central control box receives the data of the indoor and outdoor temperature and humidity and the real-time operating power of the split heat pump air conditioner, and processes it. The utility model solves the problem that the actual operating energy efficiency of the split heat pump air conditioner cannot be detected on site, and the actual operating energy efficiency of the split heat pump air conditioner can be quickly understood on site, and the operating energy efficiency of the split heat pump air conditioner can be monitored accurately and in real time.
For further specification of Inverter 15HP 55 KW Split Heat Pump For Household hot water For Swimming Pool Use and other specifications, welcome to contact us!
| Unit type | SJKRS-55 II/C | |
| Specifications | 15HP | |
| Power supply | Three-phase five-wire380V/50Hz | |
| Heating mode | Direct heat/cycle type | |
| Standard working condition | Heating capacity( kw ) | 55.1 |
| Input Power(kW) | 13.7 | |
| COP | 4.5 | |
| Hot Water flow(m³/h) | 1.18 | |
| High temperature condition | Heating capacity kw ) | 51.5 |
| Input Power(kW) | 16.1 | |
| COP | 3.2 | |
| Hot Water flow(m³/h) | 0.59 | |
| Low temperature condition | Heating capacity( kw ) | 34.8 |
| Input Power(kW) | 12.4 | |
| COP | 2.8 | |
| Hot Water flow(m³/h) | 0.65 | |
| Component Information | Size of water pipe joint | DN25 |
| Water heat exchanger | Plate or sleeve heat exchanger | |
| Air Heat Exchanger | Aluminum Fin for copper tube | |
| compressor type | Semi-closed reciprocating | |
| Operation Panel | Color touch screen | |
| Maximum outlet temperature(℃) | 90℃ | |
| Refrigerants | R744 (CO2 ) | |
| Design pressure(MPa) | High side 15, low side 8 | |
| Dimensions (length, width and height mm) | 1850x1150x1900 | |
| Noise (dB) | 62 | |
| Weight(kg) | 780 | |
| SCOPE of use | Feed water temperature(℃) | 5~ 40 |
| Feed water pressure | 0.05~ 0.4 | |
| Effluent temperature(℃) | 55~ 90 | |
| Maximum flow | 2.4 | |
| Ambient temperature(℃) | ’-20~43 | |
1) standard working conditions: ambient temperature DB 20 ° c/WB 15 ° C, using side initial water temperature 15 ° C, termination water temperature 55 ° c;
2) high temperature effluent: Ambient Temperature DB 20 ° c/WB 15 ° C, using side initial water temperature 15 ° C, termination water temperature 90 ° c;
3) low temperature working condition: ambient temperature DB-10 °C, using side initial water temperature 9 °C, termination water temperature 55 °c;
Some projects for 15HP 55 KW Split Heat Pump For Household hot water
