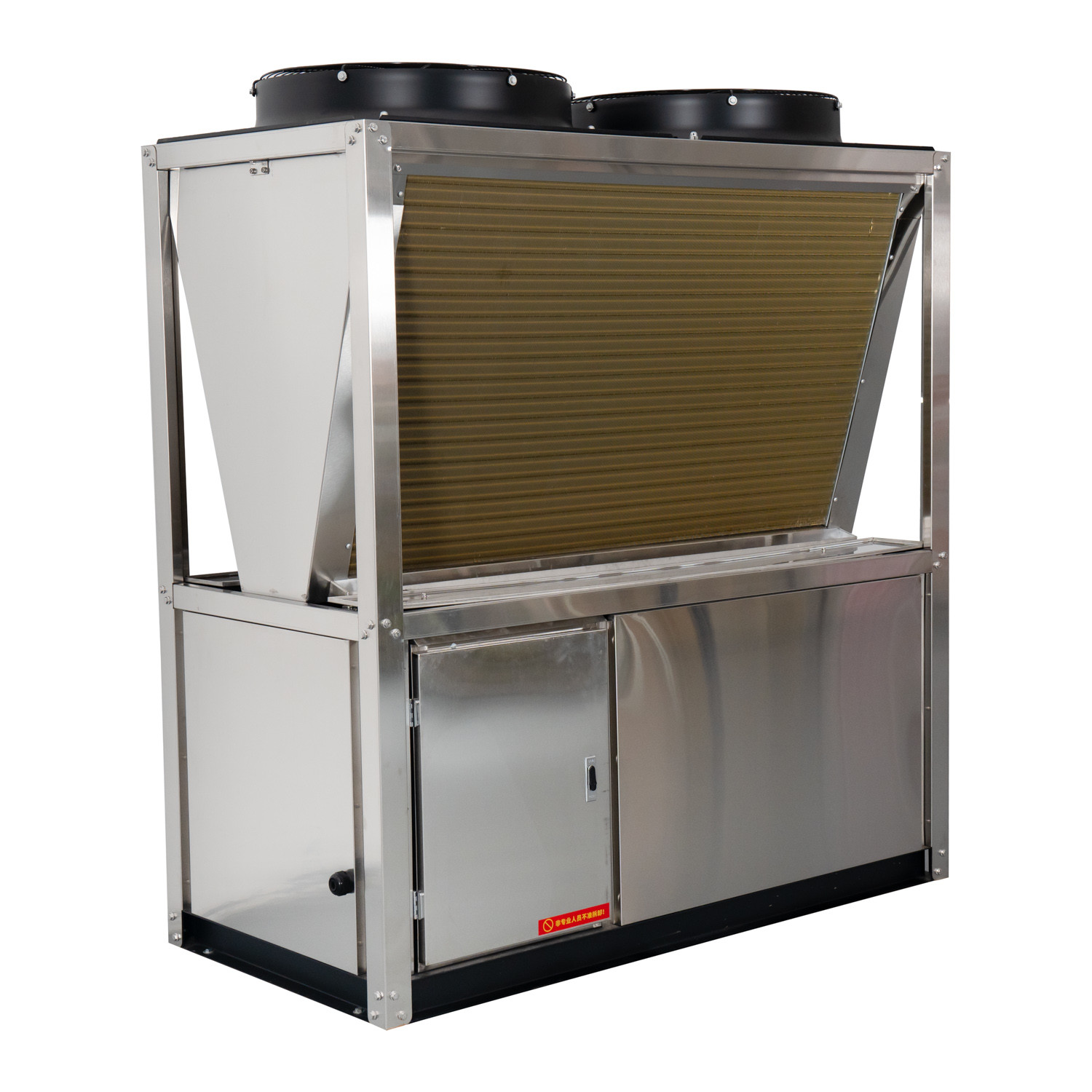

ECO-CARBON Ultra-High Temp Industrial Heat Pump 120°C
Air source heat pump is an energy-saving device that utilizes high energy to convert low-level heat sources into high-level heat sources. It is based on the principle of inverse Carnot cycle and achieves heat transfer through components such as compressors, with heating, cooling, and hot water supply functions.
1. Extreme temperature capability:
Heat pumps provide industry-leading output temperatures (75 ° C standard, 90 ° C ultra-high, 120 ° C steam), surpassing traditional heat pumps. It is crucial that they operate stably at an ambient temperature of -35 ° C using a two-stage cascade compression. This technology divides the refrigeration cycle into low/high temperature stages, which can efficiently extract heat from cold air and prevent compressor overload. The application scope covers harsh northern regions such as Heilongjiang and Xinjiang, and replaces fossil fuel boilers in industrial processes that require high temperature heat.
2. Excellent energy efficiency and cost savings:
Compared with traditional boilers, cascade systems can reduce energy consumption by 30-67%. The data shows that the cost of producing 1 ton of 80 ° C hot water is only 33% of that of coal-fired boilers, 37% of that of gas-fired boilers, and 52% of that of electric boilers (calculated at a price of 0.7 yuan/kWh). Key innovations include high-temperature vortex compressors, internal ribbed copper tubes (enhanced heat transfer), and environmentally friendly refrigerants with high exhaust temperatures and low system pressures. This reduces operating costs while achieving the 'dual carbon' goal.
3. Intelligent control and remote management:
Using a proprietary 5G cloud based IoT system, users monitor/control the unit through a mobile application - adjusting temperature, scheduling operations, and receiving real-time alerts.
4. Industrial grade durability and reliability:
Specially designed for harsh environments, the equipment includes:
Stainless steel shell: corrosion-resistant, with a service life of over 15 years
11 types of safety protection: compressor anti rollover, anti freezing, high and low pressure cut-off, power loss recovery
Noise reduction: Bionic fan blades (<72 dB), shock absorbers, and sound-absorbing covers.
5. Wide range of industrial applications and customization:
Replacing coal-fired/gas-fired boilers in high-temperature industries
Electroplating/PCB: Heating solution at 85 ° C reduces energy consumption by 20-30%
Textile dyeing: 80 ° C hot water washing/bleaching
Slaughterhouse/Leather: 58-80 ° C precision constant temperature bath.
The unit supports customization based on specific project requirements (size, components, output), and modular design enables expandable installation.
| Type | FKH-12I/GW | ||||
| Side air outlet | |||||
| Power specifications | 220V~50Hz | ||||
| Heating capacity under A1 operating condition(20) |
12kW | ||||
| Heating consumption power under A1 working condition |
4.8kW | ||||
| Heating capacity under A2 working condition(7) |
11.5kW | ||||
| Heating consumption power under A2 working condition |
5.3kW | ||||
| Heating capacity under A3 working cond ition (-12) |
10.5kW | ||||
| Heating consumption power under A3 working condition |
5.3kW | ||||
| Heating capacity under A4working condition(-20) |
9kW | ||||
| Heating consumption power under A4 working condition |
5.6kW | ||||
| Maximum operating current | 40A | ||||
| Discharge | 2.1m³/h | ||||
| Noise | ≤56dB(A) | ||||
| Water side pressure loss | ≤72kPa | ||||
| Unit size (ength x width x height mm) | 1030×410×1390 | ||||
| CONNECT SIZE | DN32(hexagon nipples) | ||||
| Unit weight (kg) | 160 | ||||
FAQ:
1.Can the heat pump work when it's cold outdoors?
yes! Air source heat pumps can easily maintain a constant and comfortable temperature at home throughout the year. 2.Is air source heat pump a renewable energy source?
Air source heat pumps are powered by your electricity supply, but the heat is extracted from 100% renewable energy sources. 3.Are they suitable for my home?
Whether your house is old or new, if your house has good insulation, an air source heat pump may be a good choice.
